Description
Product Description
Cam Kit-487-Chain Drv-WaterCooled-Race Series Lifters - M8
Features

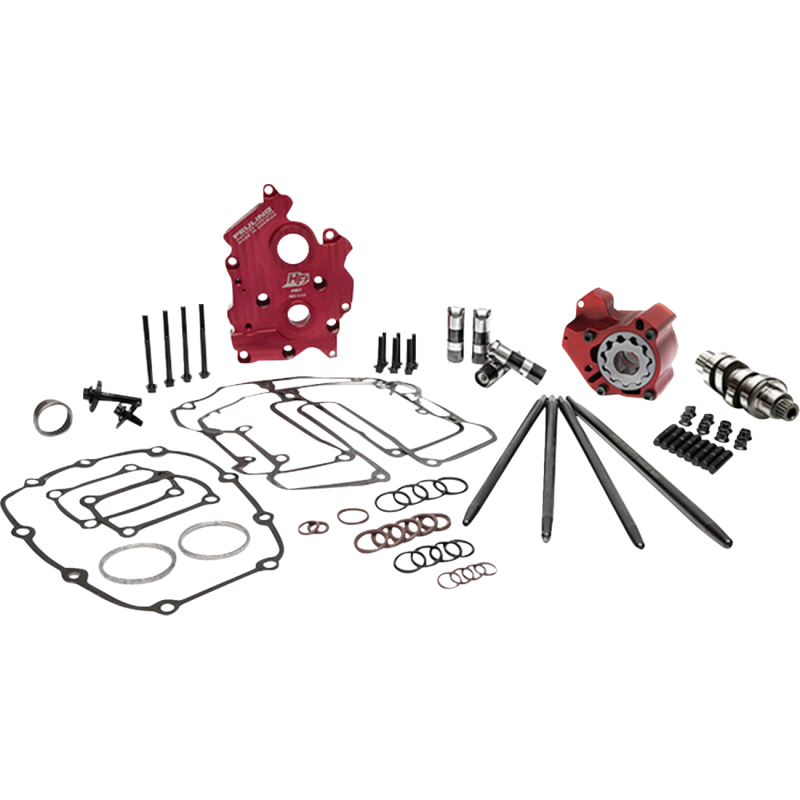

- 487 Reaper® Chain Drive Camshaft, Cam Installation Kit, Race Series® Lifters, One Piece Pushrod, Race Series® Oil Pump, High Flow Camplate, and ARP Rocker Studs and Nuts, Camplate/Oil Pump Fasteners are included in this kit
- 487 Reaper Camshaft
- Bolt-in
- Camshaft for 114" and 117" engine
- Maintains bottom end power and pulls hard above 2,950 rpm when compared to stock
- Responds very well to increased bore and or compression
- RPM range 2,250 - 6,100
- Cam Installation Kit
- Includes cam bearing, cam/crank hardware and gasket/O-ring kit
- Race Series® Full-Travel Lifters
- Hydraulic roller lifters, standard OD (0.8420-0.8423)
- Cam specs measured in the engine on the lifter @ 0.050 using a 1.61 rocker arm ratio.
- One Piece Pushrods
- Heavy duty 7/16 diameter tube with 0.165 wall thickness, precision concentricity, heat treated with a black oxide finish
- Race Series® Oil Pump
- Increase oil pressure, scavenge volume and engine oil flow
- 30% more pressure gear volume over stock
- 53% more scavenge gear volume over stock
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case
- 46% more oil volume to the crankshaft and connecting rod bearing
- 15°- 25° cooler engine temperatures
- 15°- 30° cooler oil temperatures
- 10-30 more PSI of oil pressure
- Reduces wet sumping, blow by and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- FEULING test results show a 50% reduction of engine sump oil level.
- High Flow Camplate
- Hydraulic lifters have a full .200 of total travel designed with a slower bleed down rate to handle heavy valve spring pressures
- Rear wheel power gains of 2 horsepower and 2 ft. lb. of torque are achieved.
- Bolts into stock location
- Made in the USA
- Chain Drive
- Billet 7075 aluminum
- Cam specs measured on the lifter @ 0.050" using a 1.61 rocker arm ratio. Feuling does not recommend tuning beyond stock emissions standards.
